Sifter Screen; Efficient Separation of Fines and Unwanted Particles in Feed Production Lines
The Sifter Screen is a screening and separation equipment used in animal feed, poultry feed, and aquaculture feed production lines for separating fines and removing unwanted particles and production residues from the material flow. Using screening surfaces and controlled motion, the equipment separates materials based on particle size and can be designed and manufactured according to the material characteristics, production capacity, and specific requirements of the end user.
The Sifter Screen is available in capacities ranging from 5 to 40 tons per hour. The appropriate capacity depends on factors such as material characteristics, particle-size distribution, screen opening size, feed rate, and operating conditions. Therefore, the nominal capacity should be selected according to the actual process conditions.

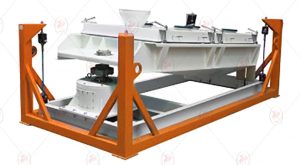

Sifter – Sieve
Different Sifting Motions
One of the important factors affecting screening performance is the motion pattern of the screening surface. Depending on the equipment design and application, the screening motion can be circular, elliptical, or linear. Selecting the appropriate motion pattern, together with proper adjustment of operating parameters such as frequency and amplitude, can affect material movement across the screening surface, residence time, and the probability of particles passing through the screen openings.
The suspended design of the equipment helps reduce the transmission of operating vibrations to the plant structure. When properly designed, installed, and maintained, this configuration contributes to stable equipment operation and reduces the transmission of vibration to surrounding structures and equipment.
Key Features of the Sifter Screen
Suitable Screening Structure

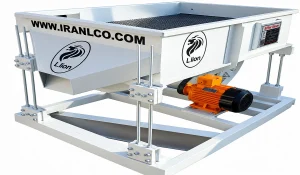

Sifter – Sieve
The equipment is designed with a suitable screening structure for effectively separating fines and unwanted particles from the material flow, making it suitable for various screening applications in feed production lines.
Various Capacities
Sifter Screen can be designed and manufactured with capacities ranging from 5 to 40 tons per hour, according to the requirements of the customer and the operating conditions of the production line.
Selectable Motion Pattern
Depending on the equipment design and application, the screening motion can be configured as circular, elliptical, or linear, allowing the equipment to be adapted to material characteristics and specific separation requirements.
Suspended Structure
The suspended structure helps reduce vibration transmission to the plant structure and surrounding equipment, providing a suitable configuration for industrial applications and stable operation.
Technical Specifications – Sifter Screen
| Specification | Value |
|---|---|
| Motor Power | 3 kW |
| Motor Speed | 900 rpm |
| Sifter Dimensions | 1 ×2 m , 2 ×3 m |
| Capacity Range | 5–40 tons/hour |
| Motion Pattern | Circular, elliptical, or linear, depending on equipment design |
